Dimension reduction

A typical machine learning task involves working with a large number of predictors which can make data analysis challenging.
For example, to compare each of the 784 features in our predicting digits example, we would have to create 306,936 scatterplots.
Creating one single scatterplot of the data is impossible due to the high dimensionality.

Dimension reduction

The general idea of dimension reduction is to reduce the dimension of the dataset while preserving important characteristics, such as the distance between features or observations.
With fewer dimensions, data analysis becomes more feasible.
The general technique behind it all, the singular value decomposition, is also useful in other contexts.
We will describe Principal Component Analysis (PCA).

Motivation: preserving distance

We consider an example with twin heights.
Some pairs are adults, the others are children.
Here we simulate 100 two-dimensional points that represent the number of standard deviations each individual is from the mean height.
Each point is a pair of twins.

Motivation: preserving distance

We see correlation is high and two clusters of twins:

Motivation: preserving distance

Our features are $n$ two-dimensional points.
We will pretend that visualizing two dimensions is too challenging and want to explore the data through one histogram.
We want to reduce the dimensions from two to one, but still be able to understand important characteristics of the data.

Motivation: preserving distance

Start by standardizing data

library(matrixStats)
x <- sweep(x, 2, colMeans(x))
x <- sweep(x, 2, colSds(x), "/")

Motivation: preserving distance

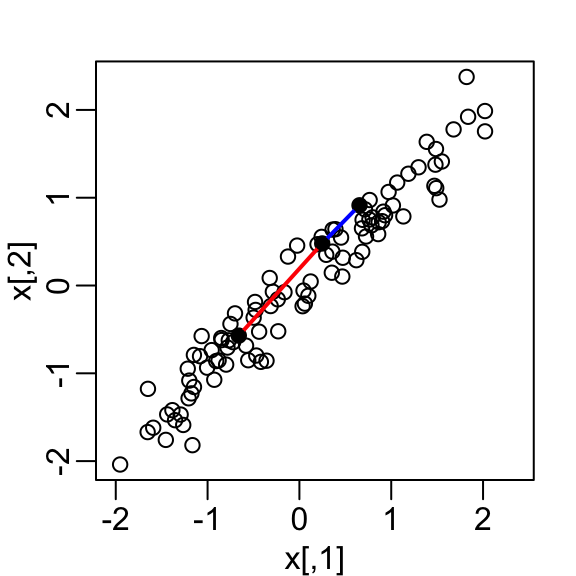

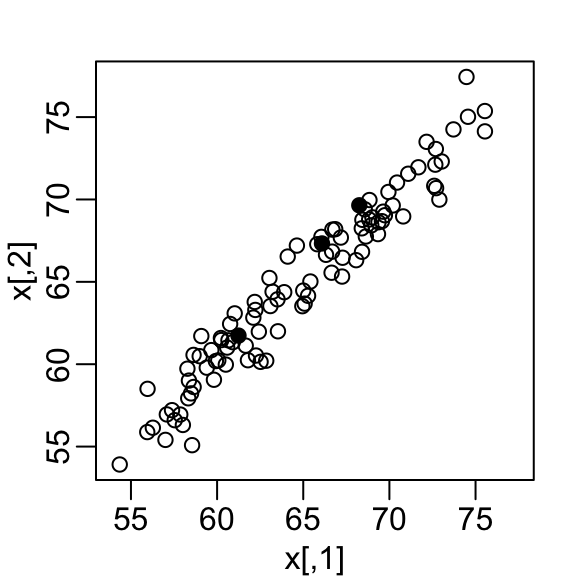

We highlight the distance between observation 1 and 2 (blue), and observation 1 and 51 (red).

Motivation: preserving distance

We can compute these distances using dist:

d <- dist(x)
as.matrix(d)[1, 2]

[1] 0.5949407

as.matrix(d)[2, 51]

[1] 1.388275

Note that the blue line is shorter.
We want our one dimension summary to approximate these distances.

Motivation: preserving distance

Note the blue and red line are almost diagonal.
An intuition is that most the information about distance is in that direction.
We can rotate the points in a way that preserve the distance between points, while increasing the variability in one dimension and reducing it on the other.
Using this method, we keep more of the information about distances in the first dimension.

Rotations

We saw that any point $(x_1, x_2)^\top$ can be written as the base and height of a triangle with a hypotenuse going from $(0,0)^\top$ to $(x_1, x_2)^\top$:

\[ x_1 = r \cos\phi, \,\, x_2 = r \sin\phi \]

with $r$ the length of the hypotenuse and $\phi$ the angle between the hypotenuse and the x-axis.

Rotations

To rotate the point $(x_1, x_2)^\top$ around a circle with center $(0,0)^\top$ and radius $r$ by an angle $\theta$ we change the angle to $\phi + \theta$:

\[ z_1 = r \cos(\phi+ \theta), \,\, z_2 = r \sin(\phi + \theta) \]

Rotations

We can use trigonometric identities to rewrite $(z_1, z_2)$:

\[ \begin{aligned} z_1 &= r \cos(\phi + \theta)\\ &= r \cos \phi \cos\theta - r \sin\phi \sin\theta\\ &= x_1 \cos(\theta) - x_2 \sin(\theta)\\ z_2 &= r \sin(\phi + \theta)\\ &= r \cos\phi \sin\theta + r \sin\phi \cos\theta\\ &= x_1 \sin(\theta) + x_2 \cos(\theta) \end{aligned} \]

Rotations

Here we rotate all points by a $-45$ degrees:

Rotations

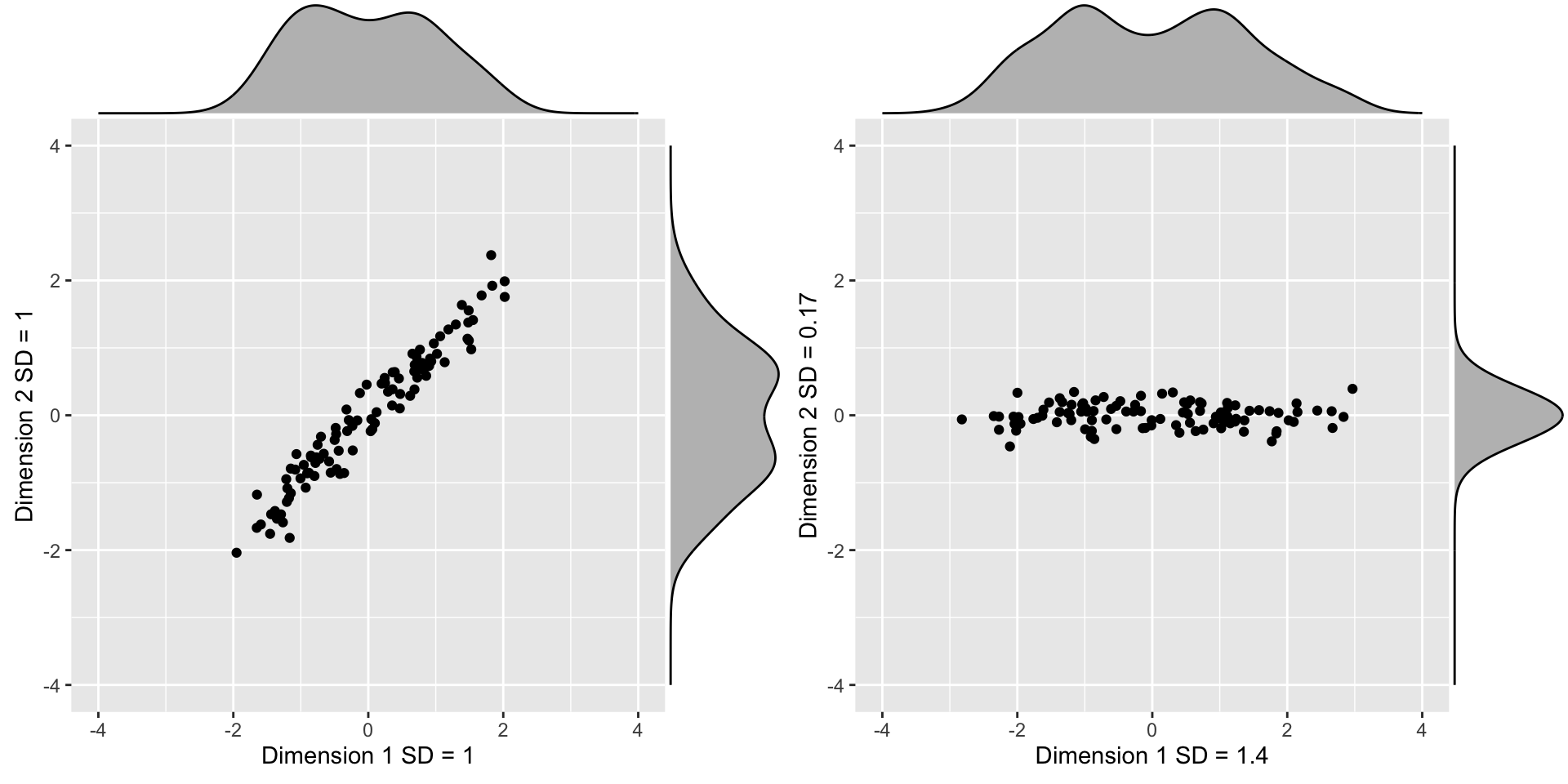

The variability of $x_1$ and $x_2$ are similar.
The variability of $z_1$ is larger than that of $z_2$.
The distances between points appear to be preserved.
We soon show, mathematically, that distance is preserved.

Linear transformations

Any time a matrix $\mathbf{X}$ is multiplied by another matrix $\mathbf{A}$, we refer to the product

\[\mathbf{Z} = \mathbf{X}\mathbf{A}\]

as a linear transformation of $\mathbf{X}$.

We can show that the previously shown rotation is a linear transformation.

Linear transformations

To see this, note that for any row $i$, the first entry was:

\[ z_{i,1} = a_{1,1} x_{i,1} + a_{2,1} x_{i,2} \]

with $a_{1,1} = \cos\theta$ and $a_{2,1} = -\sin\theta$.

Linear transformations

The second entry was also a linear transformation:

\[z_{i,2} = a_{1,2} x_{i,1} + a_{2,2} x_{i,2}\]

with $a_{1,2} = \sin\theta$ and $a_{2,2} = \cos\theta$.

Linear transformations

We can therefore write these trasformation using the folowing matrix notation:

\[ \begin{pmatrix} z_1\\z_2 \end{pmatrix} = \begin{pmatrix} a_{1,1}&a_{1,2}\\ a_{2,1}&a_{2,2} \end{pmatrix}^\top \begin{pmatrix} x_1\\x_2 \end{pmatrix} \]

Linear transformations

An advantage of using linear algebra is that we can write the transformation for the entire dataset by saving all observations in a $N \times 2$ matrix:

\[ \mathbf{X} \equiv \begin{bmatrix} \mathbf{x_1}^\top\\ \vdots\\ \mathbf{x_n}^\top \end{bmatrix} = \begin{bmatrix} x_{1,1}&x_{1,2}\\ \vdots&\vdots\\ x_{n,1}&x_{n,2} \end{bmatrix} \]

Linear transformations

We can then obtain the rotated values $\mathbf{z}_i$ for each row $i$ by applying a linear transformation of $X$:

\[ \mathbf{Z} = \mathbf{X} \mathbf{A} \mbox{ with } \mathbf{A} = \, \begin{pmatrix} a_{1,1}&a_{1,2}\\ a_{2,1}&a_{2,2} \end{pmatrix} = \begin{pmatrix} \cos \theta&\sin \theta\\ -\sin \theta&\cos \theta \end{pmatrix} . \]

The columns of $\mathbf{A}$ are referred to as directions because if we draw a vector from $(0,0)$ to $(a_{1,j}, a_{2,j})$, it points in the direction of the line that will become the $j-th$ dimension.

Linear transformations

If we define:

theta <- -45 * 2*pi/360 #convert to radians
A <- matrix(c(cos(theta), -sin(theta), sin(theta), cos(theta)), 2, 2)

We can write code implementing a rotation by any angle $\theta$ using linear algebra:

rotate <- function(x, theta){
  theta <- theta*2*pi/360
  A <- matrix(c(cos(theta), -sin(theta), sin(theta), cos(theta)), 2, 2)
  x %*% A
}

Linear transformations

Another advantage of linear algebra we can convert $\mathbf{Z}$ back to $\mathbf{X}$ by multiplying by the inverse $^{-1}.

\[ \mathbf{Z} \mathbf{A}^\top = \mathbf{X} \mathbf{A}\mathbf{A}^\top\ = \mathbf{X} \]

Linear transformations

In this particular case, we can use trigonometry to show that:

\[ x_{i,1} = b_{1,1} z_{i,1} + b_{2,1} z_{i,2}\\ x_{i,2} = b_{1,2} z_{i,1} + b_{2,2} z_{i,2} \]

with $b_{2,1} = \cos\theta$, $b_{2,1} = \sin\theta$, $b_{1,2} = -\sin\theta$, and $b_{2,2} = \cos\theta$.

Linear transformations

This implies that:

\[ \mathbf{X} = \mathbf{Z} \begin{pmatrix} \cos \theta&-\sin \theta\\ \sin \theta&\cos \theta \end{pmatrix} \]

This implies that all the information in $\mathbf{X}$ is included in the rotation $\mathbf{Z}$.

Linear transformations

Note that in this case

\[ \begin{pmatrix} \cos \theta&-\sin \theta\\ \sin \theta&\cos \theta \end{pmatrix} = \mathbf{A}^\top \]

which implies

\[ \mathbf{Z} \mathbf{A}^\top = \mathbf{X} \mathbf{A}\mathbf{A}^\top\ = \mathbf{X} \]

and therefore that $\mathbf{A}^\top$ is the inverse of $\mathbf{A}$.

Note

Remember that we represent the rows of a matrix as column vectors.
This explains why we use $\mathbf{A}$ when showing the multiplication for the matrix $\mathbf{Z}=\mathbf{X}\mathbf{A}$, but transpose the operation when showing the transformation for just one observation: $\mathbf{z}_i = \mathbf{A}^\top\mathbf{x}_i$.

Linear transformations

To see that distance is preserved note that the distance between two points $\mathbf{z}_h$ and $\mathbf{z}_i$ is

\[ \begin{aligned} ||\mathbf{z}_h - \mathbf{z}_i|| &= ||\mathbf{A} \mathbf{x}_h - \mathbf{A} \mathbf{x}_i|| \\ &= || \mathbf{A} (\mathbf{x}_h - \mathbf{x}_i) || \\ &= (\mathbf{x}_h - \mathbf{x}_i)^{\top} \mathbf{A}^{\top} \mathbf{A} (\mathbf{x}_h - \mathbf{x}_i) \\ &=(\mathbf{x}_h - \mathbf{x}_i)^{\top} (\mathbf{x}_h - \mathbf{x}_i) \\ &= || \mathbf{x}_h - \mathbf{x}_i|| \end{aligned} \]

Linear transformations

Here is an example for a 30 degree rotation, although it works for any angle:

all.equal(as.matrix(dist(rotate(x, 30))), as.matrix(dist(x)))

[1] TRUE

Using linear algebra, we can rewrite the quantity above as:

Orthogonal transformations

We refer to transformation with the property $\mathbf{A} \mathbf{A}^\top = \mathbf{I}$ as orthogonal transformations.
These are guaranteed to preserve the distance between any two points.
We previously demonstrated our rotation has this property.
We can confirm using R:

A %*% t(A)

             [,1]         [,2]
[1,] 1.000000e+00 1.014654e-17
[2,] 1.014654e-17 1.000000e+00

Orthogonal transformations

$\mathbf{A}$ being orthogonal also guarantees that the total sum of squares (TSS) of $\mathbf{X}$, defined as $\sum_{i=1}^n \sum_{j=1}^p x_{i,j}^2$ is equal to the total sum of squares of the rotation $\mathbf{Z} = \mathbf{X}\mathbf{A}^\top$.

\[ \sum_{1=1}^n ||\mathbf{z}_i||^2 = \sum_{i=1}^n ||\mathbf{A}^\top\mathbf{x}_i||^2 = \sum_{i=1}^n \mathbf{x}_i^\top \mathbf{A}\mathbf{A}^\top \mathbf{x}_i = \sum_{i=1}^n \mathbf{x}_i^\top\mathbf{x}_i = \sum_{i=1}^n||\mathbf{x}_i||^2 \]

Orthogonal transformations

We can confirm using R:

theta <- -45
z <- rotate(x, theta) # works for any theta
sum(x^2)

[1] 198

sum(z^2)

[1] 198

Orthogonal transformations

This can be interpreted as a consequence of the fact that an orthogonal transformation guarantees that all the information is preserved.
However, although the total is preserved, the sum of squares for the individual columns changes.

Transformations

Here we compute the proportion of TSS attributed to each column, referred to as the variance explained or variance captured by each column, for $\mathbf{X}$:

colSums(x^2)/sum(x^2)

[1] 0.5 0.5

and $\mathbf{Z}$:

colSums(z^2)/sum(z^2)

[1] 0.98477912 0.01522088

We now explain how useful this property can be.

Principal Component Analysis

We have established that orthogonal transformations preserve the distance between observations and the total sum of squares.
We have also established that, while the TSS remains the same, the way this total is distributed across the columns can change.
The general idea behind Principal Component Analysis (PCA) is to try to find orthogonal transformations that concentrate the variance explained in the first few columns.
We can then focus on these few columns, effectively reducing the dimension of the problem.

Principal Component Analysis

In our specific example, we are looking for the rotation that maximizes the variance explained in the first column:

Principal Component Analysis

We find that a -45 degree rotation appears to achieve the maximum, with over 98% of the total variability explained by the first dimension.
We denote this rotation matrix with $\mathbf{V}$:

theta <- 2*pi*-45/360 #convert to radians
V <- matrix(c(cos(theta), -sin(theta), sin(theta), cos(theta)), 2, 2)

Principal Component Analysis

We can rotate the entire dataset using:

\[ \mathbf{Z} = \mathbf{X}\mathbf{V} \]

In R:

z <- x %*% V

Principal Component Analysis

The first dimension of z is referred to as the first principal component (PC).
Because almost all the variation is explained by this first PC, the distance between rows in x can be very well approximated by the distance calculated with just z[,1].

Principal Component Analysis

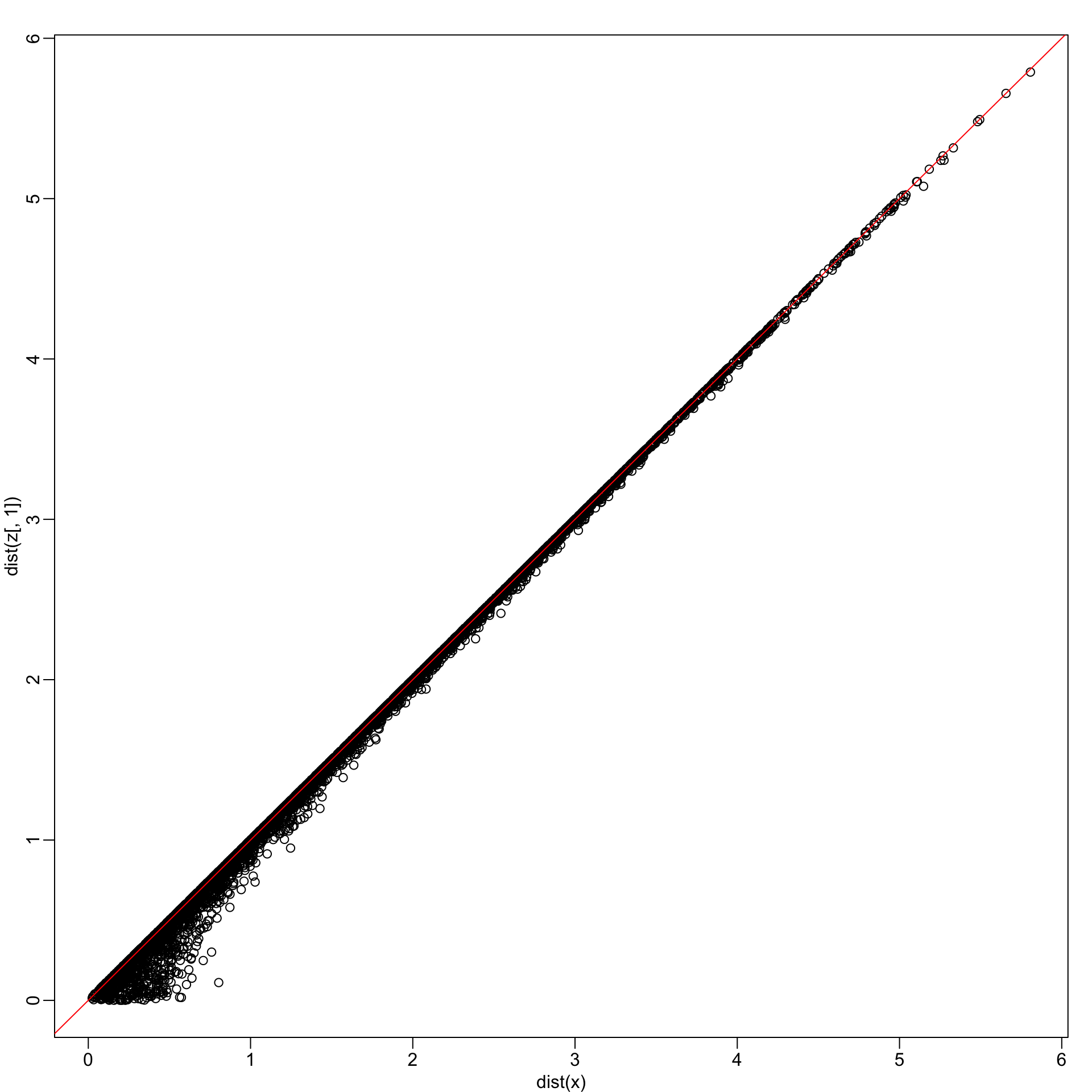

rafalib::mypar()
plot(dist(x), dist(z[,1]))
abline(0,1, col = "red")

Principal Component Analysis

The two groups can be clearly observed with the one dimension:

Better than with any of the two original dimensions.

Principal Component Analysis

We can visualize these to see how the first component summarizes the data:

Principal Component Analysis

This idea generalizes to dimensions higher than 2.
As done in our two dimensional example, we start by finding the $p \times 1$ vector $\mathbf{v}_1$ with $||\mathbf{v}_1||=1$ that maximizes $||\mathbf{X} \mathbf{v}_1||$.
The projection $\mathbf{X} \mathbf{v}_1$ is the first PC.

Principal Component Analysis

To find the second PC, we subtract the variation explained by first PC from $\mathbf{X}$:

\[ \mathbf{r} = \mathbf{X} - \mathbf{X} \mathbf{v}_1 \mathbf{v}_1^\top \]

and then find the vector $\mathbf{v}_2$ with$||\mathbf{v}_2||=1$ that maximizes $||\mathbf{r} \mathbf{v}_2||$.
The projection $\mathbf{X} \mathbf{v}_2$ is the second PC.

Principal Component Analysis

We then subtract the variation explained by the first two PCs, and continue this process until we have the entire rotation matrix and matrix of principal components, respectively:

\[ \mathbf{V} = \begin{bmatrix} \mathbf{v}_1&\dots&\mathbf{v}_p \end{bmatrix}, \mathbf{Z} = \mathbf{X}\mathbf{V} \]

The ideas of distance preservation extends to higher dimensions.

Principal Component Analysis

For a multidimensional matrix with $p$ columns, we can find an orthogonal transformation $\mathbf{A}$ that preserves the distance between rows, but with the variance explained by the columns in decreasing order.
If the variances of the columns $\mathbf{Z}_j$, $j>k$ are very small, these dimensions have little to contribute to the distance calculation and we can approximate the distance between any two points with just $k$ dimensions.
If $k$ is much smaller than $p$, then we can achieve a very efficient summary of our data.

Warning

Notice that the solution to this maximization problem is not unique because $||\mathbf{X} \mathbf{v}|| = ||-\mathbf{X} \mathbf{v}||$.
Also, note that if we multiply a column of $\mathbf{A}$ by $-1$, we still represent $\mathbf{X}$ as $\mathbf{Z}\mathbf{V}^\top$ as long as we also multiple the corresponding column of $\mathbf{V}$ by -1.
This implies that we can arbitrarily change the sign of each column of the rotation $\mathbf{V}$ and principal component matrix $\mathbf{Z}$.

Principal Component Analysis

In R, we can find the principal components of any matrix with the function prcomp:

pca <- prcomp(x, center = FALSE)

The default behavior is to center the columns of x before computing the PCs, an operation we don’t currently need because our matrix is scaled.

Principal Component Analysis

The object pca includes the rotated data $Z$ in pca$x and the rotation $\mathbf{V}$ in pca$rotation.
We can see that columns of the pca$rotation are indeed the rotation obtained with -45 (remember the sign is arbitrary):

pca$rotation

            PC1        PC2
[1,] -0.7071068  0.7071068
[2,] -0.7071068 -0.7071068

Principal Component Analysis

The square root of the variation of each column is included in the pca$sdev component.
This implies we can compute the variance explained by each PC using:

pca$sdev^2/sum(pca$sdev^2)

[1] 0.98477912 0.01522088

Principal Component Analysis

The function summary performs this calculation:

summary(pca)

Importance of components:
                          PC1     PC2
Standard deviation     1.4034 0.17448
Proportion of Variance 0.9848 0.01522
Cumulative Proportion  0.9848 1.00000

Principal Component Analysis

We also see that we can rotate x ($\mathbf{X}$) and pca$x ($\mathbf{Z}$) as explained with the mathematical earlier:

all.equal(pca$x, x %*% pca$rotation)

[1] TRUE

all.equal(x, pca$x %*% t(pca$rotation))

[1] TRUE

Iris example

The iris data is a widely used example.
It includes four botanical measurements related to three flower species:

names(iris)

[1] "Sepal.Length" "Sepal.Width"  "Petal.Length" "Petal.Width"  "Species"

head(iris$Species)

[1] setosa setosa setosa setosa setosa setosa
Levels: setosa versicolor virginica

Iris example

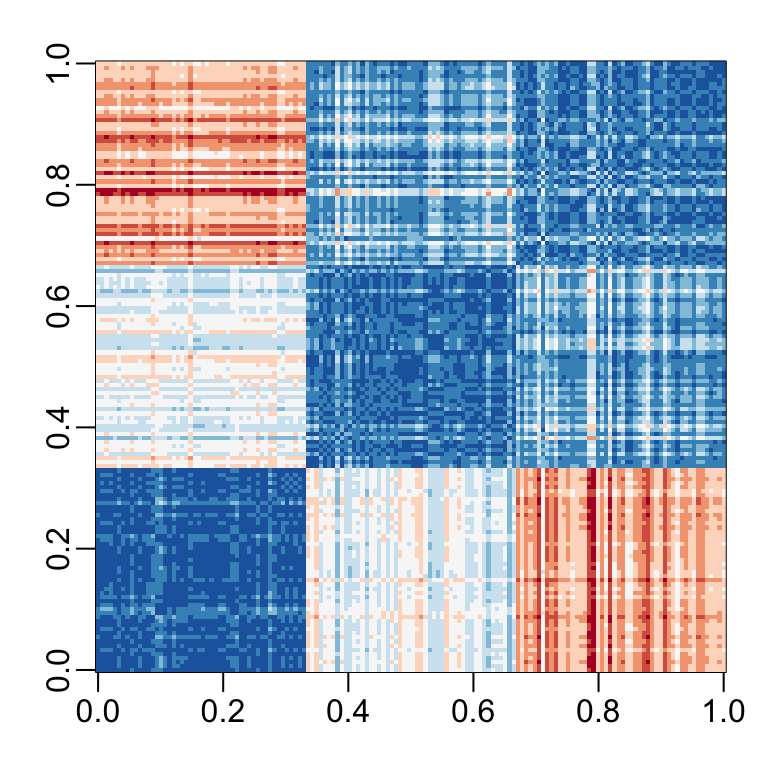

If we visualize the distances, we see the three species:

Iris example

Our features matrix has four dimensions
Three are very correlated:

cor(x)

             Sepal.Length Sepal.Width Petal.Length Petal.Width
Sepal.Length    1.0000000  -0.1175698    0.8717538   0.8179411
Sepal.Width    -0.1175698   1.0000000   -0.4284401  -0.3661259
Petal.Length    0.8717538  -0.4284401    1.0000000   0.9628654
Petal.Width     0.8179411  -0.3661259    0.9628654   1.0000000

Iris example

If we apply PCA, we should be able to approximate this distance with just two dimensions, compressing the highly correlated dimensions.
Using the summary function, we can see the variability explained by each PC:

pca <- prcomp(x)
summary(pca)

Importance of components:
                          PC1     PC2    PC3     PC4
Standard deviation     2.0563 0.49262 0.2797 0.15439
Proportion of Variance 0.9246 0.05307 0.0171 0.00521
Cumulative Proportion  0.9246 0.97769 0.9948 1.00000

Iris example

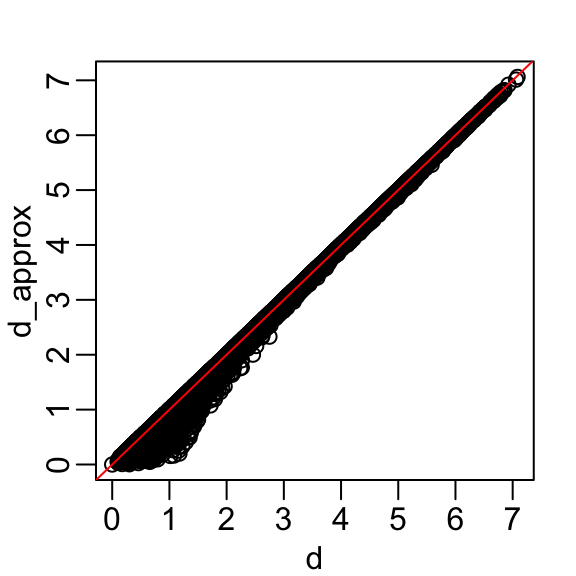

We are able to approximate the distances with two dimensions:

Iris example

A useful application is we can now visualize with a two-dimensional plot:

data.frame(pca$x[,1:2], Species = iris$Species) |>
  ggplot(aes(PC1, PC2, fill = Species)) +
  geom_point(cex = 3, pch = 21) +
  coord_fixed(ratio = 1)

Iris example

PCA visualized

Iris example

We learn that:

the first PC ia weighted average of sepal length, petal length, and petal width (red in first column), and subtracting a a quantity proportional to sepal width (blue in first column).
The second PC is a weighted average of petal length and petal width, minus a weighted average of sepal length and petal width.

MNIST example

The written digits example has 784 features.
Is there any room for data reduction? We will use PCA to answer this.
We expect pixels close to each other on the grid to be correlated: dimension reduction should be possible.

MNIST example

Let’s compute the PCs:

pca <- prcomp(mnist$train$images)

MNIST example

And look at the variance explained:

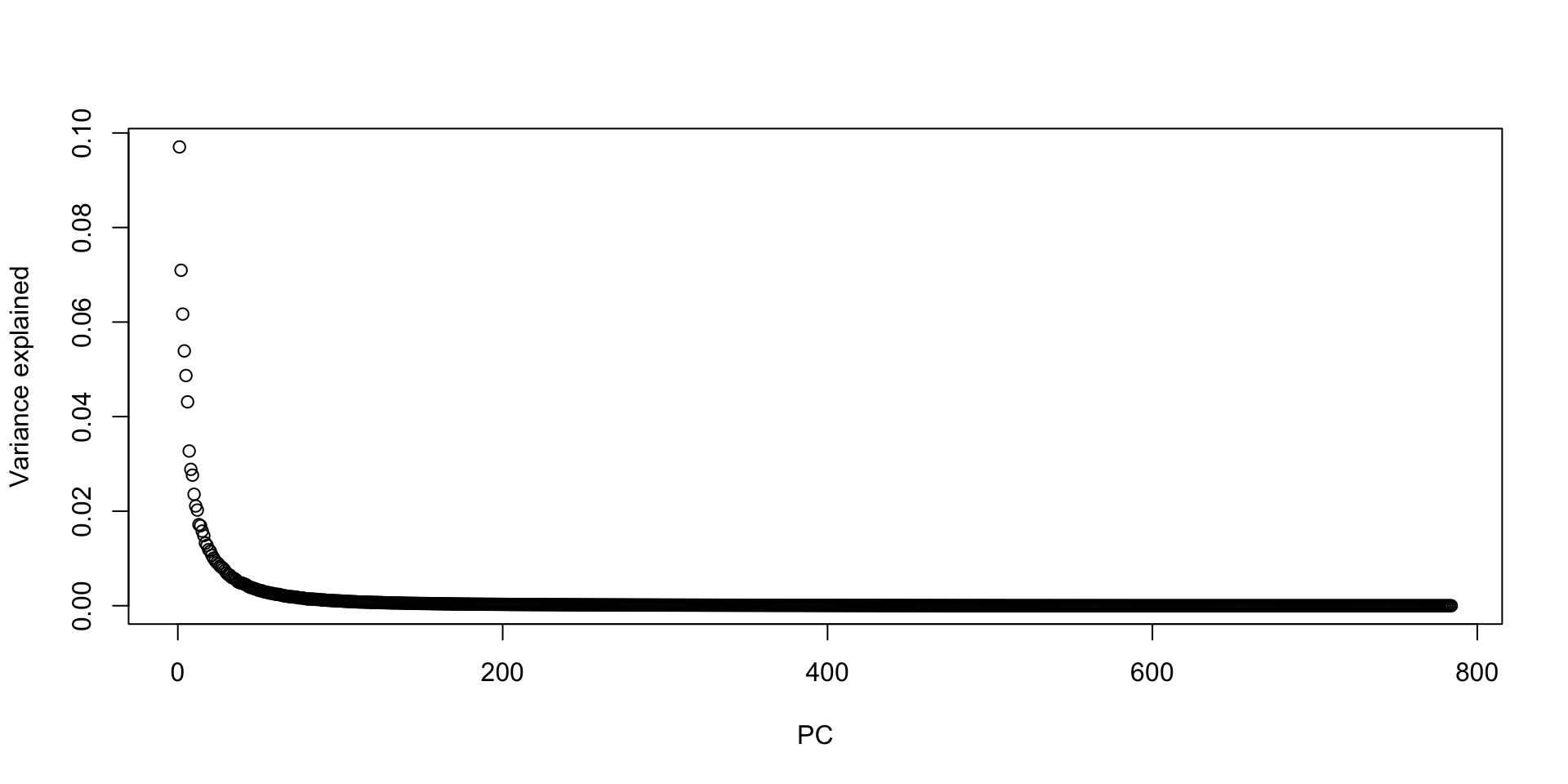

plot(pca$sdev^2/sum(pca$sdev^2), xlab = "PC", ylab = "Variance explained")

MNIST example

First two PCs for a random sample of 500 digits:

MNIST example

We can also see the rotation values on the 28 $\times$ 28 grid to get an idea of how pixels are being weighted in the transformations that result in the PCs.

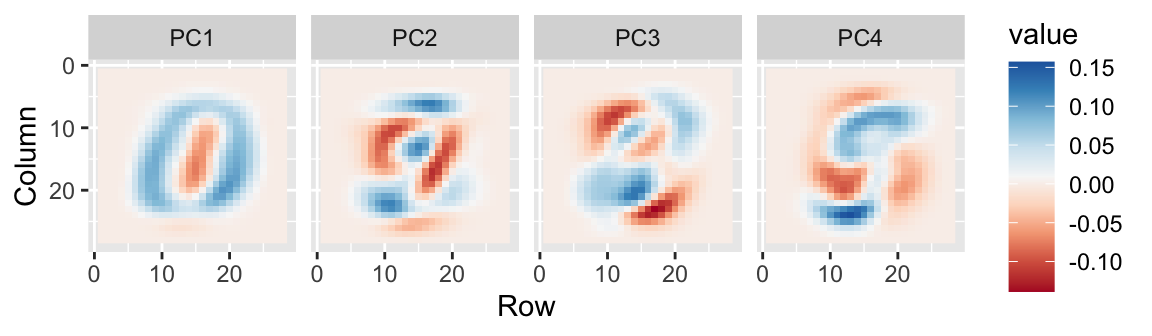

First four PCs

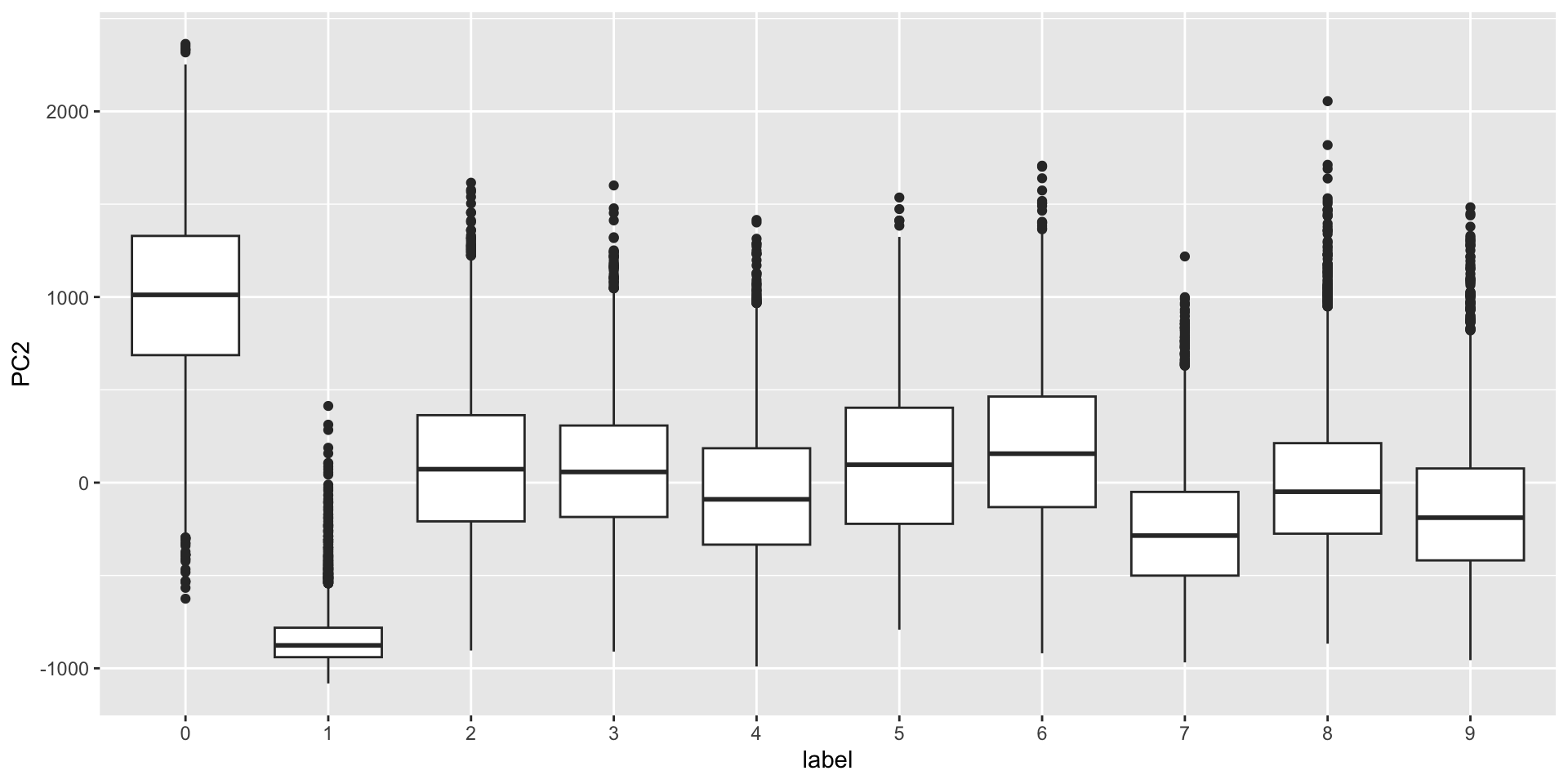

First PC

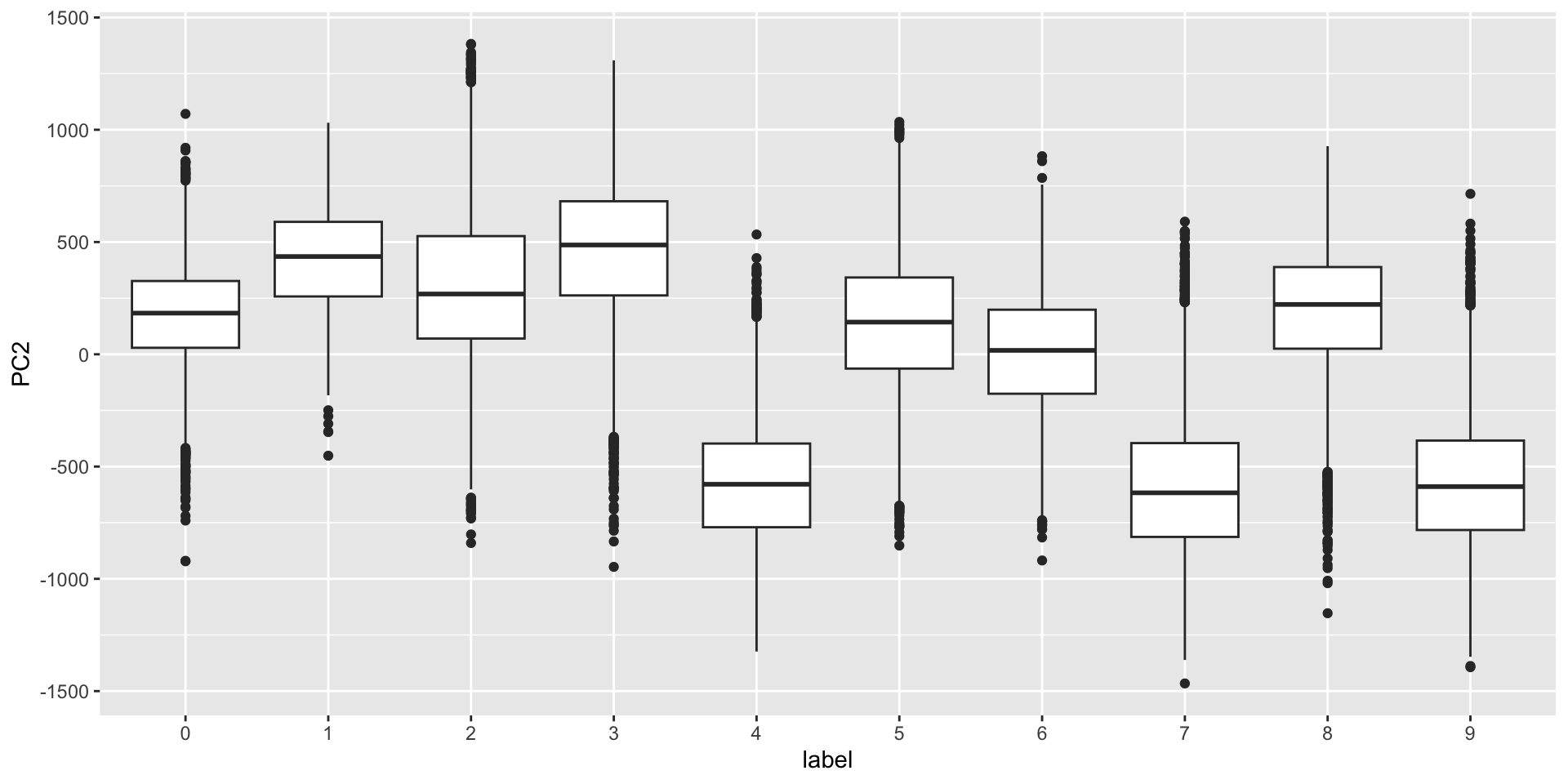

Second PC

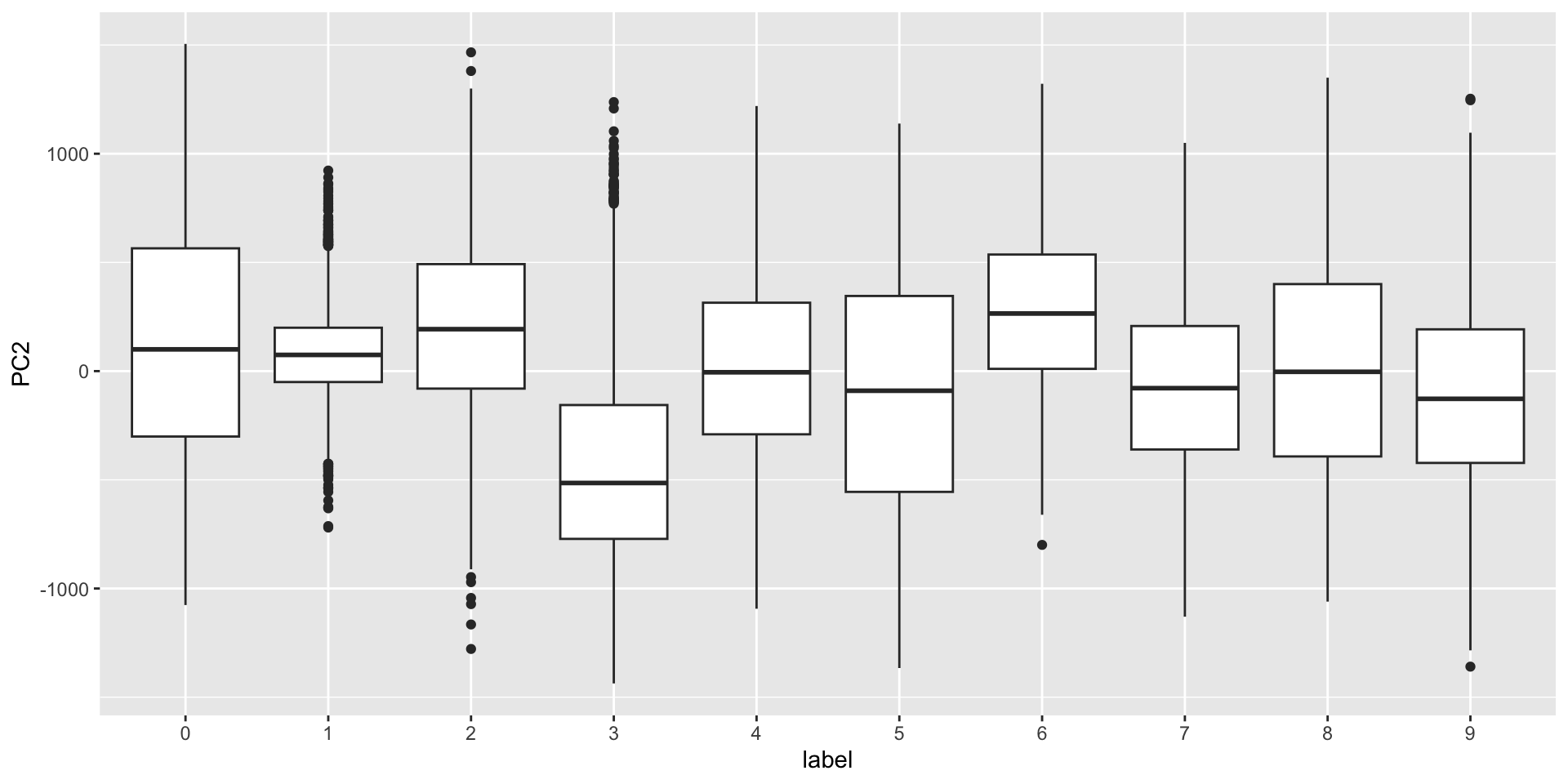

Third PC

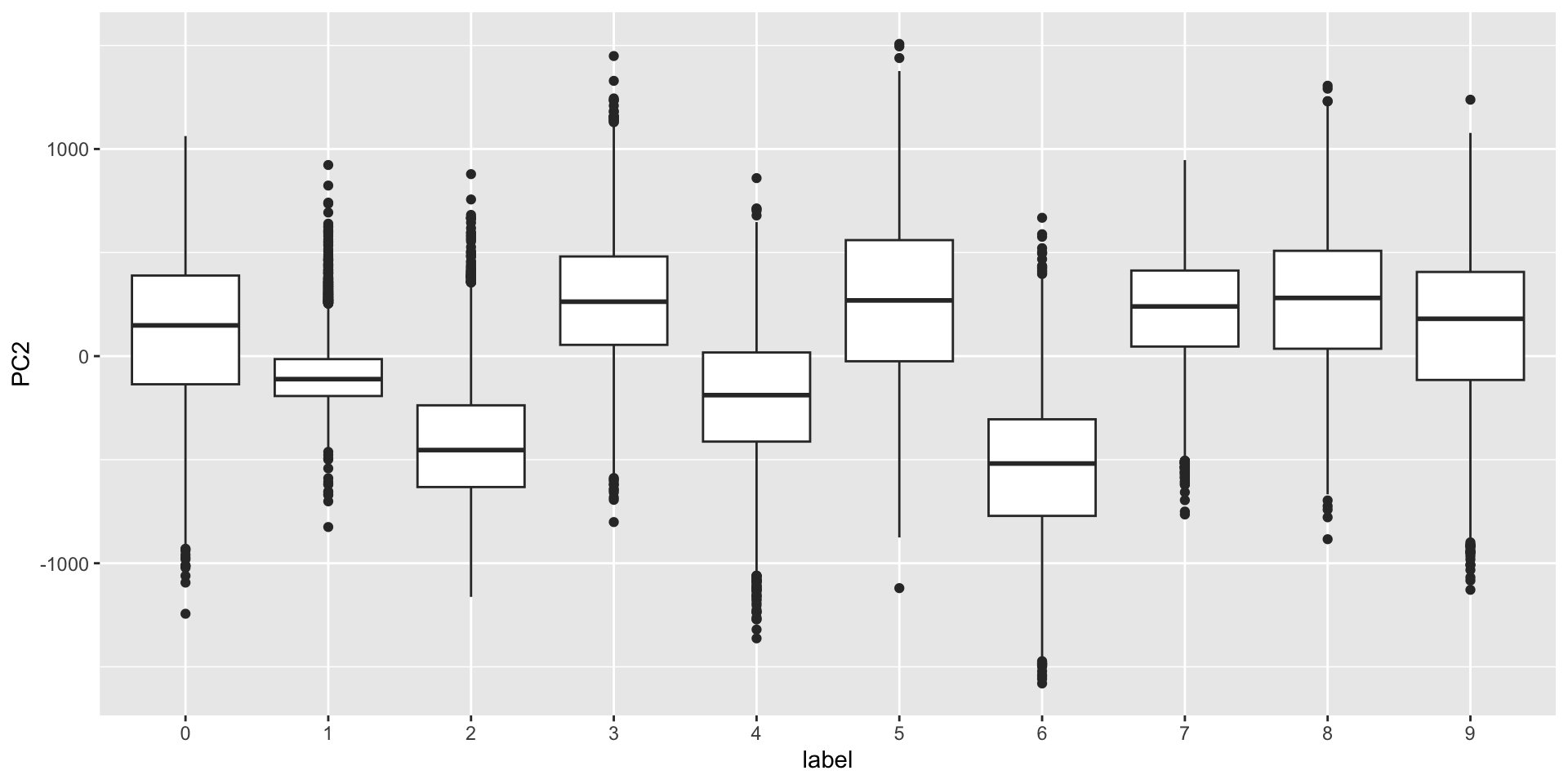

Fourth PC

MNIST example

We can also confirm that the lower variance PCs appear related to unimportant variability, mainly smudges in the corners.

Last four PCs

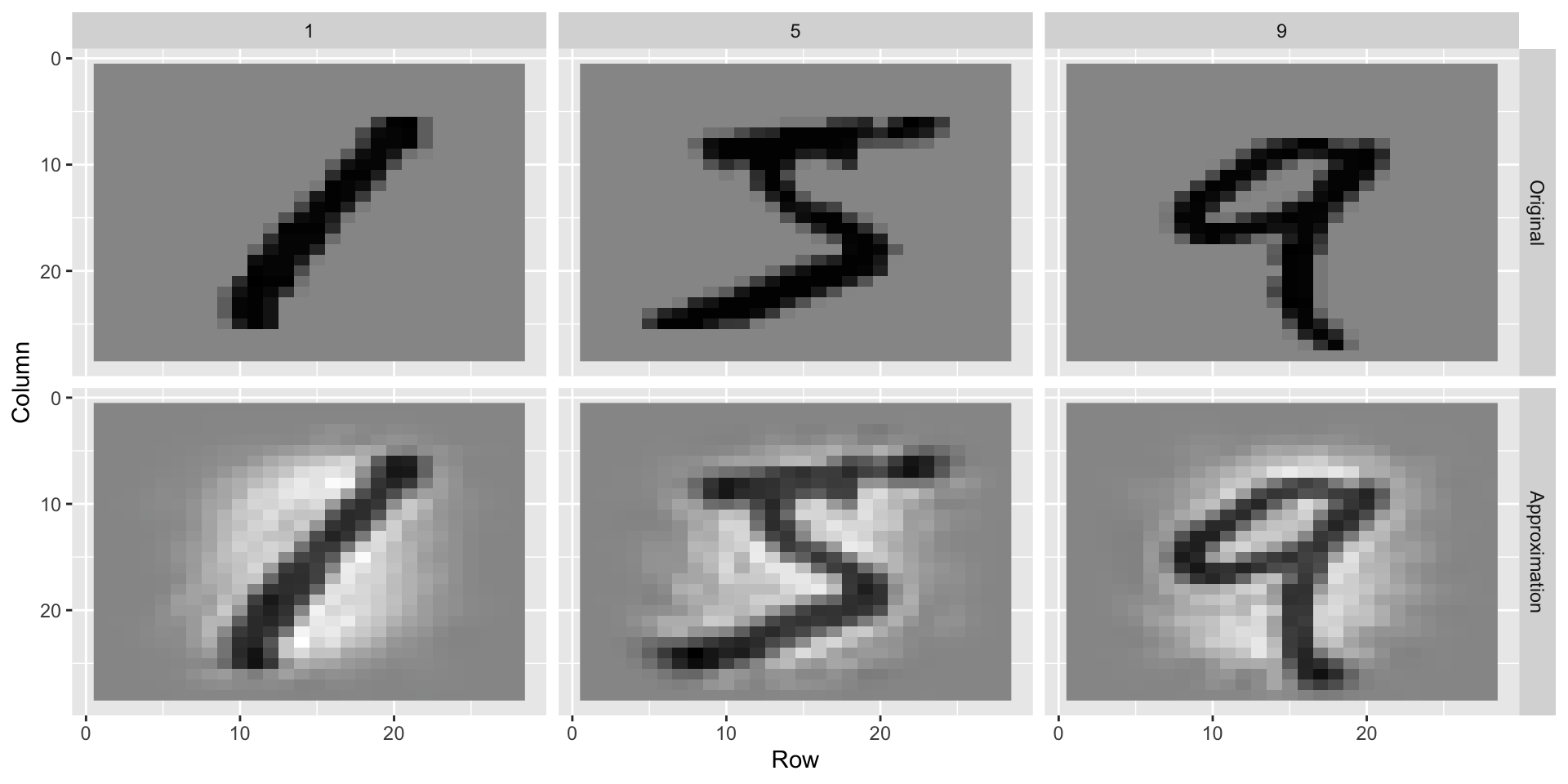

200 dimensions approximation

images_hat <- pca$x[,1:200] %*% t(pca$rotation[,1:200])

Dimension Reduction
